PRODUCTS

Commercial Use

0406-1280-102

Feature:

    1. Convenient compact size 103x43x67mm.

    2. Encapsulated to protect from dust, moisture and vibration.

    3. Voltage Spike Protected.

  • Technical parameters
  • Application

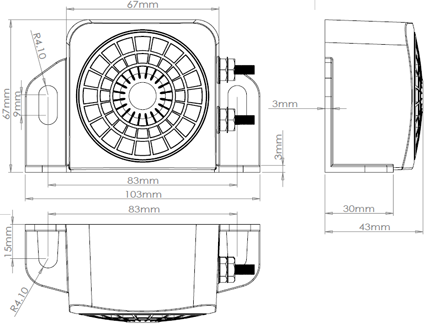

  • Mounting Size

    Sound type

    beep

    Sound level

    102±4dB(A) at 1.2m

    (SAE J994 TYPE C) with 28VDC applied.

    Working voltage

    12 to 80 volt DC

    Working Current

    350 mA±40mA.

    Sealing

    Encapsulated to protect from dust, moisture and vibration.

    Housing

    Grey, polycarbonate

    Operating Temperature

    -30°C to +55°C.

    Connection

    Two #8-32 UNC terminal studs.

    Pulse rate

    75-80 pulses per minute typical.

    Frequency

    1300Hz typical.

    Dust proof/water resistant

    IP68

    Medium duty, suitable for Bus, Coach, Freight, Van and Forktruck.
