PRODUCTS

Commercial Use

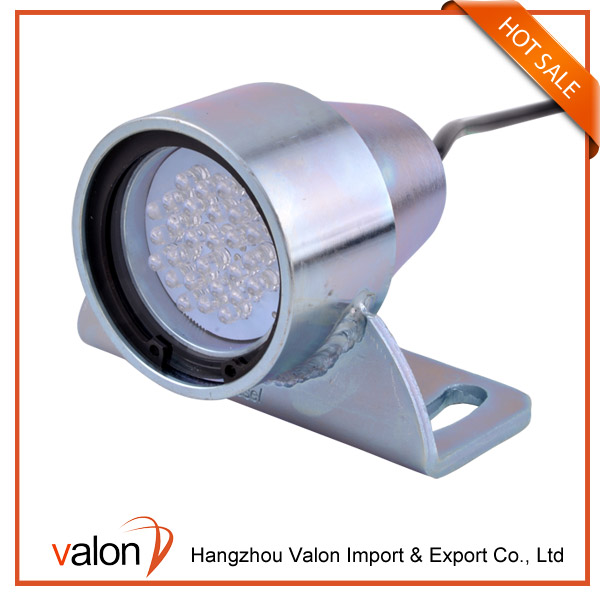

VL0602red

Feature:

    1. 180lm luminous flux, low power consumption.
    2. Heavy duty steel case.
    3. IP68 Weatherproof for all kind of rugged environment.
    4. Reverse polarity and voltage spike protected.
    5. Long work life: 20,000hours.
  • Technical parameters
  • Application

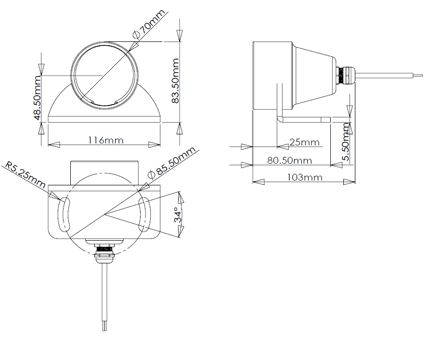

  • Mounting Size

    Dimensions

    116mm x 103mm x83.5mm.

    Wide Voltage

    10.5-110V DC.

    Power draw

    400mA at 12VDC.

    LEDs

    27x 5mm LEDs, 180lm.

    Beam angle

    15 deg

    Flash pattern

    Double flash

    Flash frequency

    60-70 flashes/min

    Sealing

    Epoxy encapsulated SMT circuit protects it from dust, moisture, and vibration.

    Housing

    Steel.

    Operating Temperature

    -30°C to +55°C.

    Connection

    RV2*0.5

    Dust proof/water resistant

    IP68.

    Heavy duty vehicles, industrial trucks and equipment.
