VL0605Amber

Feature:

    1. 170lm luminous flux, low power consumption.
    2. Heavy duty steel base.
    3. IP68 Weatherproof for all kind of rugged environment.
    4. Reverse polarity and voltage spike protected.
    5. Long work life: 20,000hours.
  • Technical parameters
  • Application

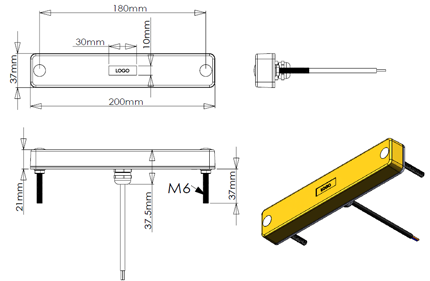

  • Mounting Size

    Dimensions

    200mm x 37mm x 58mm.

    Wide Voltage

    10.5-110V DC.

    Power draw

    400mA at 12VDC.

    LEDs

    24x 5mm LEDs, 170lm.

    Flash pattern

    Alternate flashing

    Flash frequency

    60-70 flashes/min

    Sealing

    Clear epoxy encapsulated SMT circuit protects it from dust, moisture, and vibration.

    Housing

    Polycarbonate lens + steel base.

    Operating Temperature

    -30°C to +55°C.

    Connection

    RV2*0.5

    Dust proof/water resistant

    IP68.

    Heavy duty vehicles, industrial trucks and equipment.
