PRODUCTS

Commercial Use

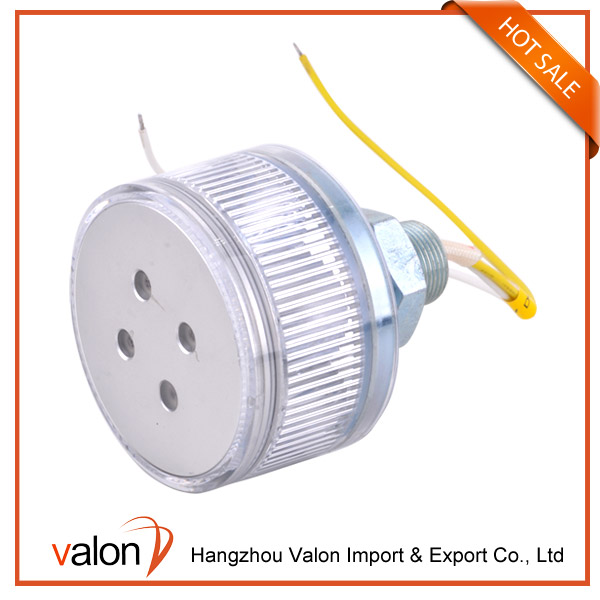

VL0604red

Feature:

    1. 500lm luminous fluxlow power consumption.

    2. Heavy duty steel base.

    3. IP68 Weatherproof for all kind of rugged environment.

    4. Reverse polarity and voltage spike protected.

    5. Long work life: 20,000hours.

  • Technical parameters
  • Application
  • Mounting Size

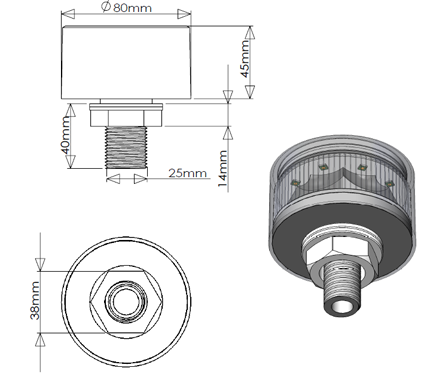

    Dimensions

    80mm DIA x 87mm H.

    Wide Voltage

    12-80V DC.

    Power draw

    800mA at 12VDC.

    LEDs

    8x High-porformance 3W LEDs, 500lm.

    Flash pattern

    Double flash

    Flash frequency

    60-70 flashes/min

    Sealing

    Clear epoxy encapsulated SMT circuit protects it from dust, moisture, and vibration.

    Housing

    Polycarbonate lens + steel base.

    Operating Temperature

    -30°C to +55°C.

    Connection

    RV2*0.5

    Dust proof/water resistant

    IP68.

    Heavy duty vehicles, industrial trucks and equipment.
